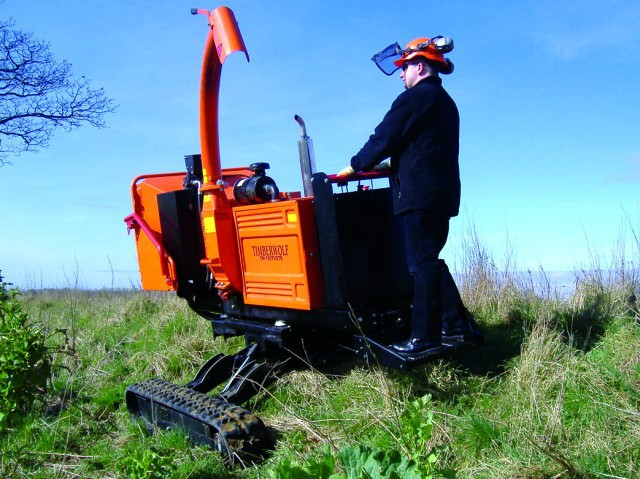

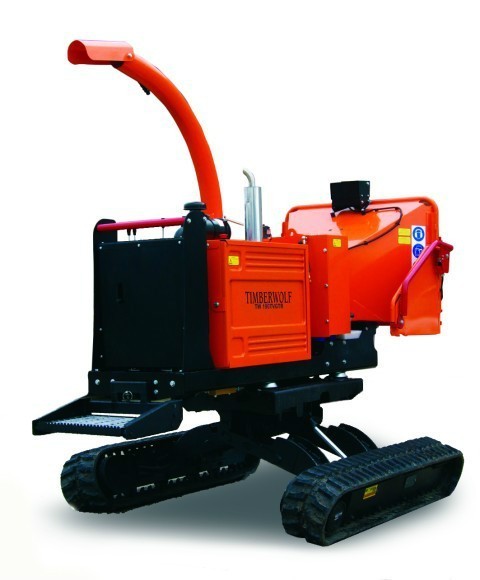

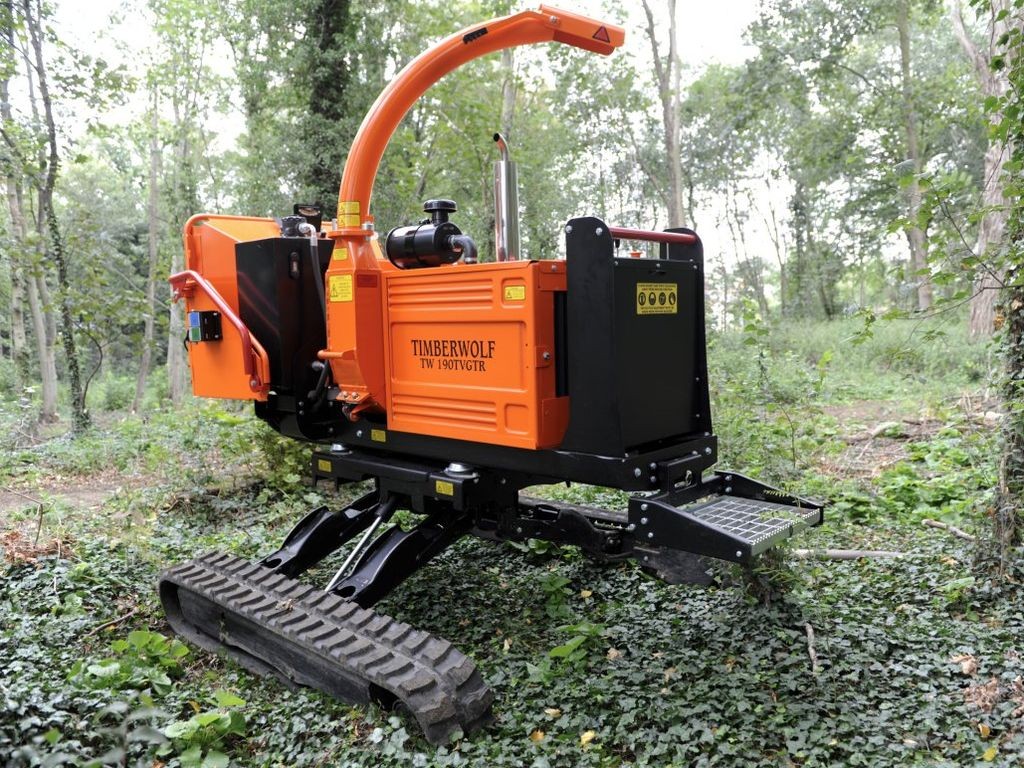

Timberwolf 190TVGTR

Dimensions

Specification

• maksymalna średnica materiału: 190 mm,
• rodzaj podawania: dwa walce hydrauliczne,
• maksymalna moc: 6.5 tph,
• podwozie:: pasowe, wariabilne,
• silnik: KUBOTA 4-cylinder (turbo diesel),
• moc silnika: 33 kW (45 HP),
• noże: 2 noże, średnica 127 mm, w pełni utwardzone, obracalne
• średnica rotora: 595 mm,
• prędkość rotora: 1 920 rpm,
• średnia wielkość wiórów: 19 mm,
• średnie zużycie paliwa: 9 l/ h,
• pojemność zbiornika paliwa: 51 l.

Benefits

• Wolftrack variable tracking system allows operator to dynamically alter the width, height and tilt of the machine in difficult terrain and slopes,
• reliable and powerful Kubota turbo engine,
• split rotor housing for easy access to blades and rotor,
• blades - reversible long-life double edge. Up to 500 hours per set, do not require shimming,
• clever rotor and blade design allow compact size that make more efficient use of engine power compared to heavier and larger designs,
• legendary Timberwolf NO STRESS CONTROL - fast reaction times ensure high efficiency, high throughput and constant discharge velocity,
• proven feed roller design of feed funnel for easy feeding and long life, plus 4 springs providing crushing ability to rollers,
• modular construction of feed funnel, roller box, rotor housing, engine bay and chassis ensures exceptional strength, accessibility and easy maintenance,
• dual side mounted feed control buttons within easy reach in any terrain for extra safety,
• "Safety Plus" features robust safety stop bar coupled with additional back up stop switch plus reverse feed control switch operating independently of safety stop bar, for maximum operator safety,
• 24 hours-7 days a week machine capable of keeping 4 people busy,
• adjustable discharge spout rotates through 270 degrees
• ride-on platform for operator.
